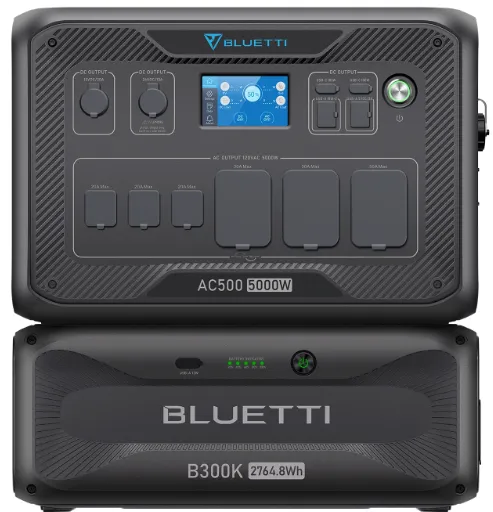

Bluetti AC500 B300K | Home Battery Backup

Transform the way you stay off-grid with Bluetti AC500 and B300K, a 5000W powerful backup for all your power needs with split-phase bonding to energize 240V heavy-duty gadgets, expandable up to 18,432Wh for growing needs, 16 versatile outlets to power 99% of your devices and a smart app control!

VERSATILE APPLICATIONS

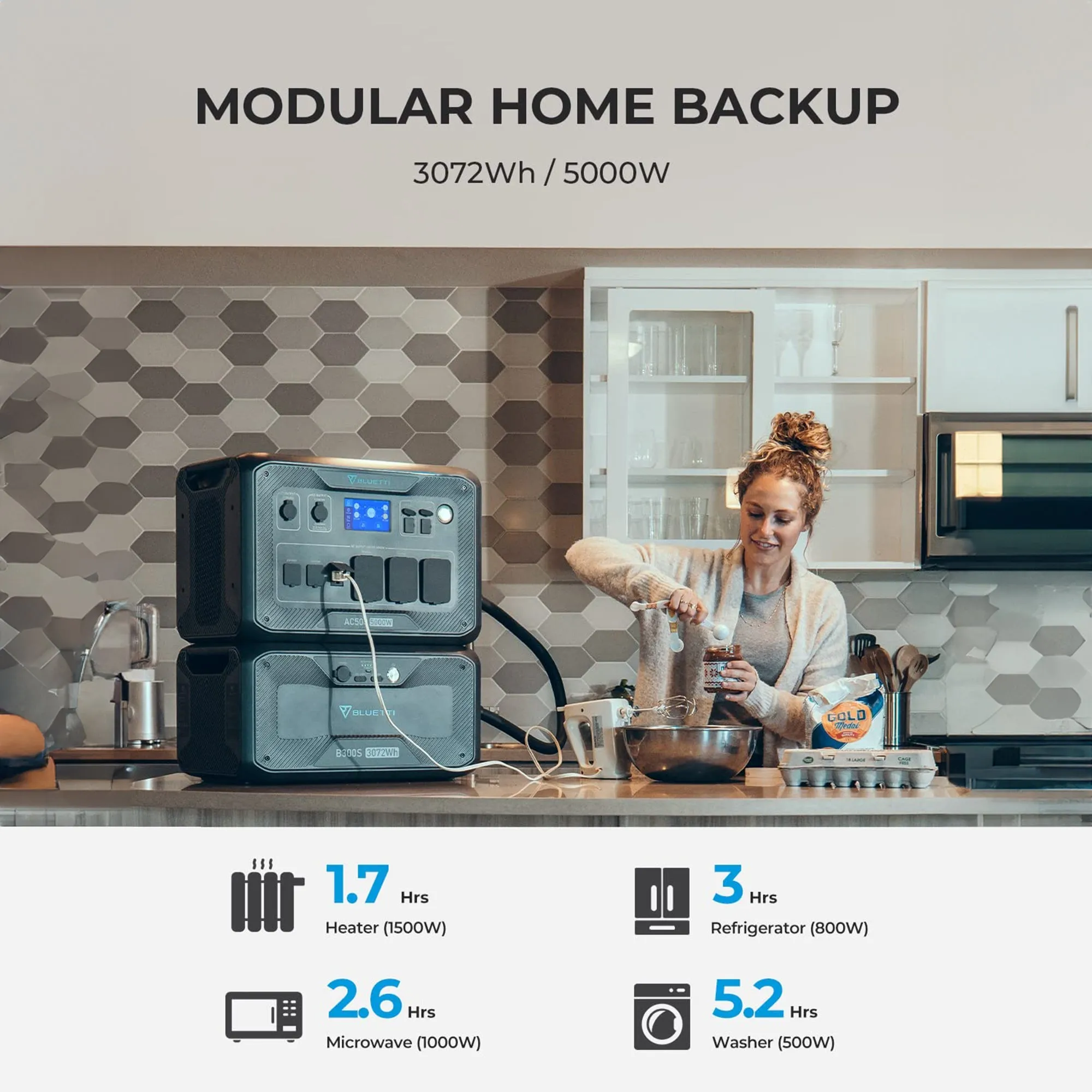

Bluetti AC500 B300K is the powerful bundle of joy that transforms your home into an energy-resilient fortress, keeps your food fresh, supports WFH setup and keeps critical medical devices powered.

A sustainable power solution for the cozy cabin in the woods, Bluetti AC500 is your ticket to enjoy the great outdoors with minimal impact on the environment.

For those who love the open roads, your RV is now powered with Bluetti power promise that lets you stay off the crowded campgrounds and away from noisy generators.

A whopping 5000W AC output with 10000W of surge power means AC500 ensures your professional equipment including mobile medical units, construction sites and film sets stay powered without a hitch.

FEATURES

Plug in the AC500 to your wall outlet and when you get back from a delicious lunch break your power back up is fully energized and ready to power you. Discover the potential of sustainable solar energy with an impressive 3000W solar input and transform sunlight into usable electrical energy. While your car's 12V/24V cigarette lighter port can charge the AC500 on the go, fuse the AC and solar charging option that charges your battery in no time with a whopping 8000W input.

From regular gadgets to heavy-duty refrigerators, air conditioners to even power tools, Bluetti AC500 B300K can cater to the energy needs of power-hungry devices with a robust 5000W AC output.

Bluetti's game-changing parallel connection allows you to hook up 2 AC500s with up to 12 B300S batteries unlocking a 240V output and an unmatched 36,864Wh capacity, good enough to cut down your energy bills and lets you enjoy uninterrupted power off-grid.

Handy app control lets you keep a tab on real-time power consumption, monitor and adjust operation modes and access firmware from wherever your adventure has landed you.

BLUETTI LAAF PROGRAM

For every unit of AC500 you purchase, somewhere in Africa a family in need is gifted the power of solar energy by Bluetti's LAAF Program, a thoughtful initiative by the power pioneers to light up the homes of African families living off-grid. With a target of 1 million, Bluetti has managed to light up over 15,000 families across 11 African countries as of May 2024.

Specifications:

AC500

AC Outlets: 3 x 120V/20A Outlets, 1 x 120V/30A L14-30, 1 x 120V/30A TT-30, 1 x 120V/50A NEMA14-50, 5,000W in total.

Inverter Type: Pure Sine Wave

Surge Power: 10,000W

USB Port: 2 x 5V/3A USB-A, 2 x 18W USB-A, 2 x USB-C 100W Max.

DC Outlets: 1 x 12V/30A (RV Outlet), 1 x 24V/10A (Car Outlet), *All regulated.

Wireless Charging Pad: 2 x 15W Max. (For Each)

AC Input: 4,500W Max. (W/ 1*B300S), 5,000W Max. (W/ 2 or more B300S)

Solar Input: 3,000W Max., VOC 12-150VDC, 15A

Car Input: 12/24V from Vehicle Cigarette Lighter Port

Maximum Input: 4,500W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) with AC and Solar Input Simultaneously

240V Split Phase Bonding: Yes, with 2-12* B300S.

App Control: Yes, WiFi & Bluetooth

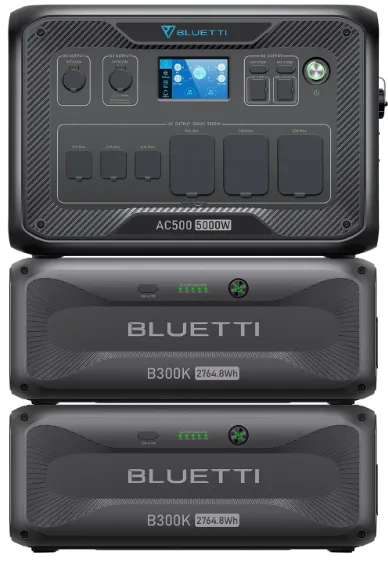

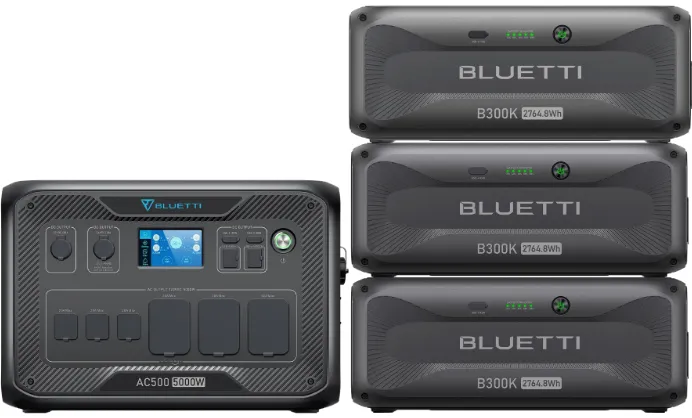

Scalability: Expandable W/Up to 6 x B300S Or 4 x B300

Simultaneous Recharge & Discharge: Yes

Weight: 66.2lbs

Dimensions (L x W x D): 20.5 x 12.8 x 14.1in

Operating Temperature: Discharging Temperature: -4°F to 104°F / -20°C to 40°C

Charging Temperature: 32°F to104°F / 0°C to 40°C

Storage Temperature: -4℉ to 104℉ / -20℃ to 40℃

Certification: FCC, UL, TELEC, CE, NTC, RCM, LOA, ICASA

Warranty: 4 Years

B300K

Model: B300K

Battery Capacity: 2,764.8Wh (51.2V, 54Ah)

Battery Type: LiFePO₄ (Lithium Iron Phosphate)

Life Cycles: 4,000 Cycles to 80% Original Capacity

USB-A: 12W Max., 5V / 2.4A

Net Weight: Approx. 65.04lbs

Dimensions (L × W × H): 20.67 × 12.87 × 8.23in

Charging Temperature: 0°C to 40°C (32°F to 104°F)

Discharging Temperature: -20°C to 40°C (-4°F to 104°F)

Storage Temperature: Up to 1 month: -20°C to 40°C (-4°F to 104°F), Up to 6 months: 20°C to 25°C (-4°F to 77°F)

Working Humidity: 5% to 95%RH

Charging Current: 60A Max. (Current may decrease outside specified temperatures)

Discharging Current: 70A Max.

Expansion Port: 2 × 58.4VDC Max., 90A Max.

What's in the Box:

1 x AC500 Power Station

1 x B300K Expandable Battery

1 x 15A AC Charging Cable

1 x AC500 Solar Charging Cable (MC4 to Aviation Cable)

1 x Car Charging Cable (Cigarette Lighter-M to MC4)

1 x B300S Solar Charging Cable (MC4 to XT90)

1 x Battery Expansion Cable (P150D)

1 x User Manual
